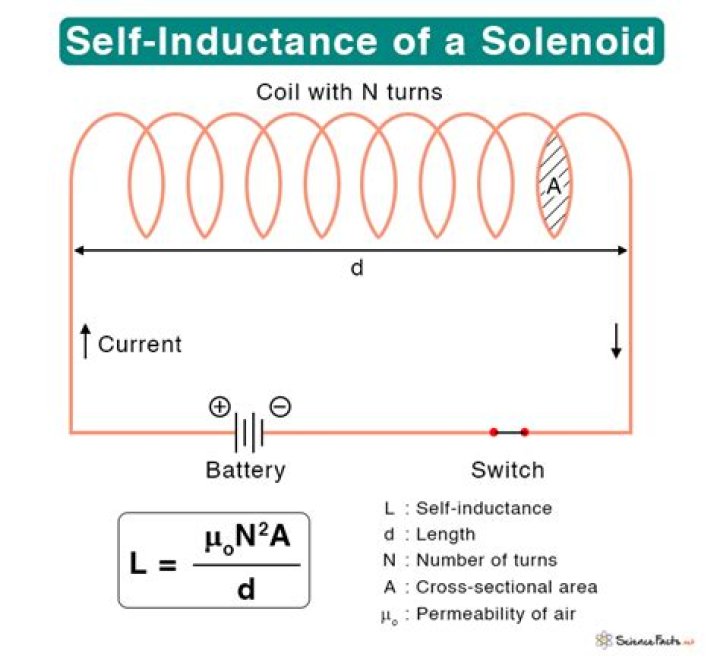

What is the self-inductance of the solenoid?
What is the self-inductance of the solenoid?
Self-inductance of a solenoid is defined as the flux associated with the solenoid when a unit amount of current is passed through it. The direction of the induced emf is such that it opposes its very own cause which produces it, it means that it opposes the change of current through the coil.
What is the formula for self-inductance?
Self-Induction and Mutual Induction
| S.No. | Self – Induction |
|---|---|
| 1. Definition | If the rate of current produces an emf or voltage in the same coil, then this type of induction is the self-induction. |
| 2. Formula | e=−Ldidt , and L=e|di/dt| For N number of turns in a coil, L=NΦTi |
What is the self-inductance?
Self-inductance is the tendency of a coil to resist changes in current in itself. Whenever current changes through a coil, they induce an EMF, which is proportional to the rate of change of current through the coil.
What does the self inductance of a solenoid depend on?
Self-inductance of the coil depends on the area of cross-section of the coil, the number of turns per unit length in the coil, the length of the solenoid and the permeability of the core material.
Is a solenoid an inductor?
A solenoid is an inductor. Not all the inductors are solenoids. A solenoid is a coil with a ferrous core that moves. An inductor is a wire coil with a fixed core, which may or may not be present.
What is the formula of self inductance of a long solenoid?
In expression for the self-inductance of a long solenoid. Also we have calculated the magnetic field due to solenoid and it is given by, B=μ0nI. Here n is the number of turns per unit length.
What is self inductance of a coil Class 12?
Current is induced in the same coil. Current tries to oppose the change in the flux. Therefore flux linkage of the coil N Φ∝ I. N Φ =LI where L=constant of proportionality and is known as self-inductance. Therefore Self-inductance will describe about the ratio of magnetic flux to the current it induces.
On what factor does the self inductance of a solenoid depends?
What will happen to the self inductance of the solenoid when iron rod is inserted in the solenoid?
If an iron rod is inserted in the solenoid, the inductance of the solenoid increases.
What is inductors and self inductance?
A circuit element used to provide self-inductance is known as an inductor. The induced emf across an inductor always acts to oppose the change in the current. This can be visualized as an imaginary battery causing current to flow to oppose the change in (a) and reinforce the change in (b).
What is a solenoid Ncert?
A coil with many circular close turns of insulated copper wire (like a cylinder as shown above) is a solenoid. One end of such a solenoid behaves like the north pole and the other as a south pole. Therefore magnetic field due to current in the solenoid is similar to a bar magnet.
