What is the characteristic of Zener diodes?
What is the characteristic of Zener diodes?
Zener diodes are heavily doped than ordinary diodes. They have extra thin depletion region. When we apply a voltage more than the Zener breakdown voltage (can range from 1.2 volts to 200 volts), the depletion region vanishes, and large current starts to flow through the junction.

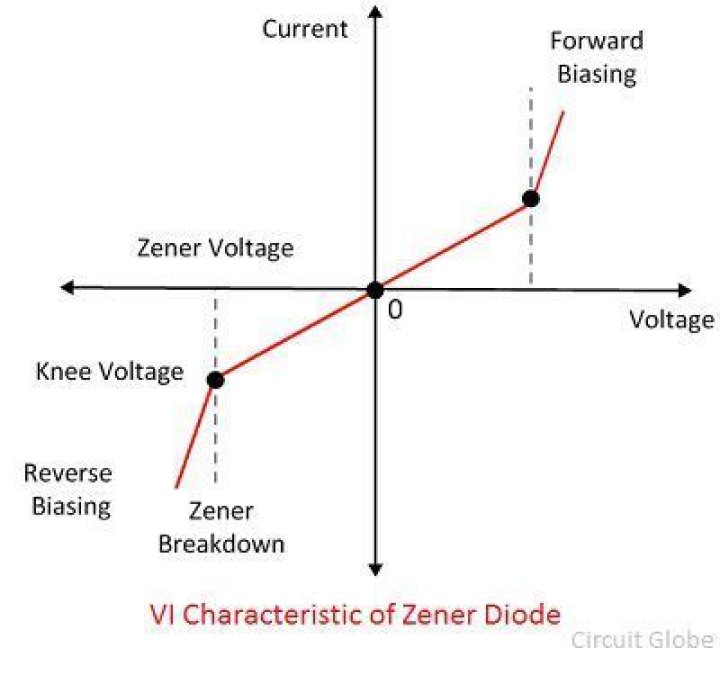

What is Zener diode and its VI characteristics?
Zener Diode is a reverse-biased heavily-doped PN junction diode which operates in the breakdown region. The reverse breakdown of a PN- junction may occur either due to Zener effect or avalanche effect. Zener effect dominates at reverse voltages less than 5 volt whereas avalanche effect dominates above 5 V.
What is Zener diode PPT?
Zener Diode A Zener diode is a type of diode that permits current not only in the forward direction like a normal diode, but also in the reverse direction if the voltage is larger than the breakdown voltage known as “Zener knee voltage” or “Zener voltage”
How does a Zener diode look like?
Zeners may be indistinguishable from regular diodes. Zener diodes may have a dark plastic casing with a dark stripe, which is the same coloring as that of other diodes. Many other zener diodes are copper colored, and are enclosed in a glass casing with a white or black or blue stripe.
What is Zener diode draw its symbol and explain its characteristics?
Differences between Diode and Zener Diode
| Diode | Zener Diode |
|---|---|
| (1) The basic diode with p-n as its junction its conduction will be limited in forwarding bias. | (1) Here the conduction is evident in both forward and reverses biases. |
| (2) The level of doping is low in this type of diode. | (2) The level of doping here is high. |
What do you mean by VI characteristics?
V-I characteristics stand for voltage-current characteristics of an electrical component or device. Put simply; it is the graph between Voltage and Current obtained when current is measured through an electronic component as a voltage is applied across it.
What is Zener diode with diagram?
Definition: A heavily doped semiconductor diode which is designed to operate in reverse direction is known as the Zener diode. In other words, the diode which is specially designed for optimising the breakdown region is known as the Zener diode. The symbolic representation of Zener diode is shown in the figure below.
How do Zener diode works?
A Zener diode operates just like a normal diode when it is forward-biased. However, when connected in reverse biased mode, a small leakage current flows through the diode. As the reverse voltage increases to the predetermined breakdown voltage (Vz), current starts flowing through the diode.
How are zener diodes made?
Zener diodes are made by heavily doped n-type and p-type semiconductors. The quantity of the doping of the semiconductors is kept different so that their breakdown voltage is different.
What are characteristics of diode?
Electrical Characteristics of Diodes Basic static characteristics of diodes are the forward voltage VF and forward current IF, and the reverse voltage and current VR and IR. The area surrounded by the orange dashed line in the diagram on the right indicates the usable area of rectifying diodes.
How is a Zener diode different from a regular diode?
Difference Between Diode and Zener Diode Diode can conduct current only in one direction, whereas zener diode allows the conduction in both directions. A normal diode will be permanently damaged for a large reverse current, but a zener diode will not. Amount of doping for P and N semiconductor layers are different in the two devices.
What is a Zener diode and how does it work?
A Zener diode is a particular type of diode that, unlike a normal one, allows current to flow not only from its anode to its cathode, but also in the reverse direction, when the Zener voltage is reached.
How can I identify Zener diodes?
Zener Diode Identification and Uses Introduction. A zener diode is a silicon diode that is optimized to work in what is known as the breakdown region. Testing. Zeners are tested the same way you would a regular diode. Identification. Zeners may be indistinguishable from regular diodes. References. Malvino, Alfred. Resources
What is difference between PN diode and Zener diode?
The major difference between PN junction and the Zener diode is that the PN junction diode allows current to pass only in the forward direction, whereas the Zener diode allows the current to flow both in the forward and the reversed direction.
