What is step plot?

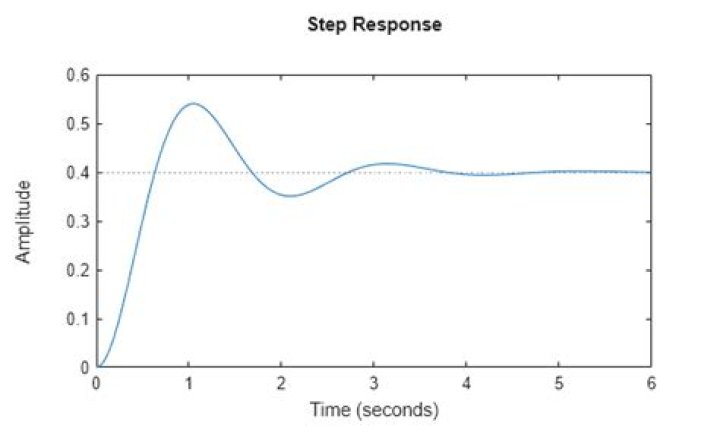

Step Response Plots step( sys ) plots the response of a dynamic system model to a step input of unit amplitude. The model sys can be continuous- or discrete-time, and SISO or MIMO. For MIMO systems, the plot displays the step responses for each I/O channel.

Can we plot multiple step response in the same plot?

You can use the same option set to create multiple step plots with the same customization. Depending on your own toolbox preferences, the plot you obtain might look different from this plot.

What are the steps to create a plot in Python?

Following steps were followed:

Define the x-axis and corresponding y-axis values as lists.
Plot them on canvas using . plot() function.
Give a name to x-axis and y-axis using . xlabel() and . ylabel() functions.
Give a title to your plot using . title() function.
Finally, to view your plot, we use . show() function.

How do I find my step response?

To find the unit step response, multiply the transfer function by the unit step (1/s) and the inverse Laplace transform using Partial Fraction Expansion..

What does .step do in Python?

step() function in Python. The step() function designs the plot such that, it has a horizontal baseline to which the data points will be connected by vertical lines. This kind of plot is used to analyze at which points the change in Y-axis value has occurred exactly with respect to X-axis.

What is a step function equation?

A step function is a piecewise-defined function in which every piece is a horizontal line segment or a point. Example 1: Let the function shown be defined for all the integers as. y=−2 for x<1y=3 for x≥1. This function is made up of infinitely many discrete points each of which have a y -coordinate of either −2 or 3 .

How do you write a step function in MATLAB?

Impulse, Step, and Ramp Functions

Copy Command.
t = (-1:0.01:1)’; impulse = t==0; unitstep = t>=0; ramp = t. *unitstep; quad = t. ^2. *unitstep;
plot(t,[impulse unitstep ramp quad])
sqwave = 0.81*square(4*pi*t); plot(t,sqwave)

What is step input signal?

A step input signal has an initial value of 0 and transitions to a specified step size value after a specified step time. When performing frequency response estimation, step inputs are quick to simulate and can be useful as a first try when you do not have much knowledge about the system you are trying to estimate.

What is plot () in Python?

The plot() function is used to draw points (markers) in a diagram. By default, the plot() function draws a line from point to point. Parameter 2 is an array containing the points on the y-axis. If we need to plot a line from (1, 3) to (8, 10), we have to pass two arrays [1, 8] and [3, 10] to the plot function.

How do you plot 4 values in Python?

“python code to plot 4 variables using matplotlib” Code Answer

import numpy as np.
import matplotlib. pyplot as plt.
fig = plt. figure()
ax1 = fig. add_axes((0.1,0.4,0.5,0.5))
ax1. set_title(‘Title of Plot’)
ax1. set_xlabel(‘X’)

Is the step response bounded?

It’s true that the unit step function is bounded. However, a system which has the unit step function as its impulse response is not stable, because the integral (of the absolute value) is infinite.
