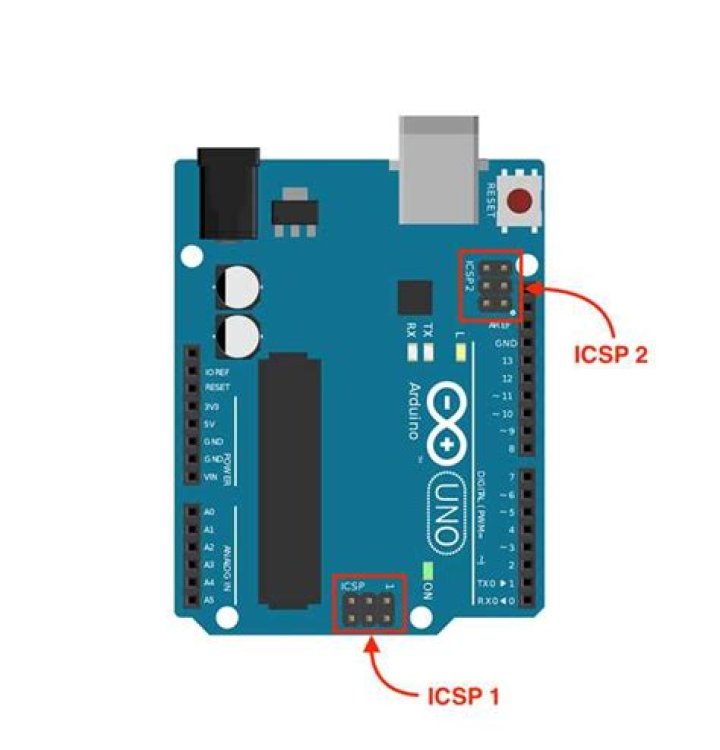

What is ICSP header in Arduino Uno?

ICSP stands for In-Circuit Serial Programming. The name originated from In-System Programming headers (ISP). Manufacturers like Atmel who work with Arduino have developed their own in-circuit serial programming headers. These pins enable the user to program the Arduino boards’ firmware.

What are ICSP pins?

ICSP( In-Circuit Serial Programming ) These pins are used to code and boot an Arduino from an external source. These pins allow inter workings of two or more Arduino boards and also allow you to upload your firmware. The ICSP pins act as an AVR programmer which is used to code or boot the Arduino.

How do I program Icsp with Arduino?

I make this step before flashing: getting the Arduino ISP with example sketch ArduinoISP, plug off the Arduino ISP and attach the 6-pin cable to the ICSP port of the second board, plug Arduino ISP to the USB port, in the Tools menu select Arduino as ISP, load with external programmer, and fail…

Which pins are present in an ICSP header?

ICSP can be used to restore a missing or damaged bootloader. A typical Arduino ICSP header has six pins, arranged 2×3. The article Connecting the Programmer: In-Circuit Serial Programming (ICSP) at Sparkfun describes some of the functions of ICSP pins, which include MISO, MOSI, SCK, V+, Ground, and Reset.

What is the full form of ICSP?

In Circuit Serial Programming (ICSP), a method for programming microcontrollers.

What are the ICSP pins on Arduino Nano?

The ICSP pins are the 3×2 set of pins top center of the board and shown in detail above. For 3-pin devices/sensors/modules that have GND-OUT-5V layout, simply plugging them into the ICSP’s GND-MOSI-5V would be the cat’s pajamas.

How do I connect my Arduino to nano?

It uses the Atmel ATmega 328P microprocessor chip.

1. Install the required device driver.
2. Install the Arduino programming environment.
3. Connect your Arduino Nano via the USB cable to your Mac/PC.
4. Start the Arduino Software.
5. Select an Example Program.
6. Compile the Example Program.
7. Upload the Executable Program to the Nano.

How many pins Arduino Nano?

Each of the 14 digital pins on the Nano can be used as an input or output, using pinMode(), digitalWrite(), and digitalRead() functions. They operate at 5 volts. Each pin can provide or receive a maximum of 40 mA and has an internal pull-up resistor (disconnected by default) of 20-50 kOhms.

What is full form of SPI?

SPI stands for Serial Peripheral Interface—it’s a de facto synchronous communication bus standard. Developed by Motorola in the 1980s, SPI boasts both simple implementation and high-speed data transfer capability.

What is Aref in Arduino Uno?

AREF means Analog REFerence. It allows us to feed the Arduino a reference voltage from an external power supply in order to configure the reference voltage used for analog input (i.e. the value used as the top of the input range).

Which is better Arduino Uno or Nano?

Key Differences between Arduino Nano vs Uno Both can be connected to the computer using a Standard A/B USB cable that is a part of the microcontroller system. If the working space is smaller, it is better to go with Nano.

Which is the smallest Arduino?

Beetle – The Smallest Arduino Board Beetle is an extremely the smallest Arduino Leonardo board. It derives its core notion from minimalism without compromising functionality. It comes with Atmel AtMega32u4 @16MHz clock time and has expanded amounts of interfaces: 10 digital pins, 5 analog pins and 4 PWN pins.

How to connect ICSP header to Arduino board?

The ICSP header is physically available on the Arduino Board in the form of 6 pins. Connect pins 11, 12, and 13 of the target Arduino with pins 11, 12, and 13 of your programmer Arduino. Note that Pin 10 of your programmer Arduino should connect to the Reset Pin of your target Arduino.

What is the use of ICSP header?

Similarly, it is asked, what is a ICSP header? It is the ICSP header that allows the microcontroller to receive the firmware or program that does all the advanced functionalities that are desired. ICSP stands for In Circuit Serial Programming, it is a standard way to program AVR chips. Also Know, what is the use of analog pins in Arduino?

What is icicsp in Arduino?

ICSP stands for In Circuit Serial Programming, it is a standard way to program AVR chips. Similarly, what is the use of analog pins in Arduino? The analog pins let you read/write analog values – basically, instead of giving out a voltage of 0 or 5 (as with digital), they can give a range of voltages between 0 and 5 (both as input and output).

How many pins are there in Arduino Uno?

It consists of 6 analog inputs, 14 digital input/output pins (of which 6 can be used as PWM outputs), a 16 MHz ceramic crystal resonator, a USB-B port, an ICSP header, a power jack and, a reset button. The picture given below is the Arduino UNO Pinout / Pin diagram:
