What is DWV tee?

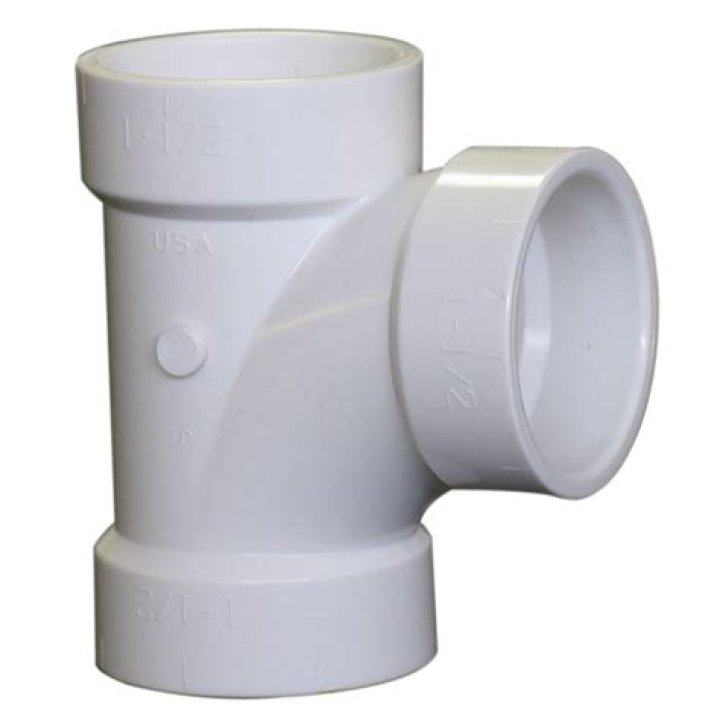

The NIBCO® PVC sanitary tee is used in residential and commercial drain, waste and vent systems. The PVC DWV sanitary tee features a hub x hub x hub connection and a flowing sweep to aid in the evacuation of waste and used fluids. …

What is a sanitary PVC fitting?

Drain, waste and vent fittings made of polyvinyl chloride (PVC). PVC-DWV fittings are used for residential and commercial sanitary systems. These fittings are joined by threading or solvent cementing and can easily be connected to steel, copper or cast iron through the use of transition fittings. …

What is a PVC saddle tee used for?

PVC saddles tees, also known as snap tees, are used to create a tee fitting for any section of rigid PVC pipe, without having to cut into the PVC pipe to install a traditional three-ended tee fitting.

Can you use a sanitary tee on its back?

When you are using a sanitary tee, you should not lay it on its back with a side opening because this will result in an upstream splash of waste when it hits the bottom of the horizontal pipe. This will create clogging inside the line.

Can I use a sanitary tee for a vent?

It also specifies which types of fittings you should use when installing vents. You have a choice between waste T-fittings, also called sanitary tees or santees, vent tees and Y-fittings.

Where do we use Wye?

Usage of a Wye

1. Wye is used to connect a horizontal drainpipe to a vertical one. It reduces the entrained solid at the junction.
2. It is also used to split branch lines.
3. A special kind of Wye is used for help insertion of pigging that keeps the pipes clear and maintains the flow.

What is a straight tee?

An equal tee, otherwise called straight tee, means the branch diameter of this tee is same with the main pipe (Run pipe) diameter of this tee. A pipe tee is defined “equal” when the bore size at the run and branch sides have the same diameter.

What does a sanitary tee look like?

A sanitary tee is shaped like the letter ‘T’, while a Wye is similar to ‘Y’. Sanitary tee is used for horizontal to vertical transition, and Wye is used for combining 2 lines into one horizontal line to maintain a flow without causing clogging.

Where is sanitary tee used?

A sanitary tee should be used when connecting a horizontal run, such as a waste arm to a vent stack or vertical riser. “If you think it’s expensive to hire a professional to do the job, wait until you hire an amateur.”

How do you install a PVC saddle tee?

Instructions

1. Dig Up the Area. Expose the PVC pipe where the tee needs to be added.
2. Confirm the Size.
3. Clean the Installation Area.
4. Apply the Glue.
5. Install the Tee.
6. Drill the Tee.
7. Complete the Installation.
