What is ball milling process?

Ball milling is a grinding method that grinds nanotubes into extremely fine powders. During the ball milling process, the collision between the tiny rigid balls in a concealed container will generate localized high pressure. Usually, ceramic, flint pebbles and stainless steel are used. 25.

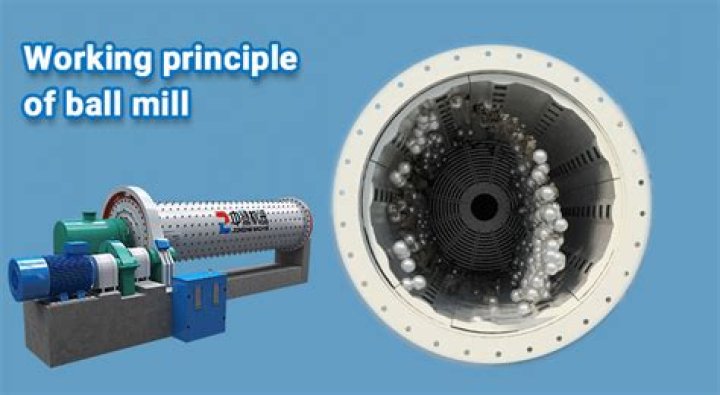

What is working principle of ball mill?

1.1 Ball Milling. A ball mill is a type of grinder used to grind and blend bulk material into QDs/nanosize using different sized balls. The working principle is simple; impact and attrition size reduction take place as the ball drops from near the top of a rotating hollow cylindrical shell.

Which material is crushed by using ball mill?

A ball mill is a cylindrical machine, generally used for mashing and crushing paints, ceramic materials, ores, and other hard materials.

Why is ball milling done?

A ball mill is a type of grinder used to grind or blend materials for use in mineral dressing processes, paints, pyrotechnics, ceramics, and selective laser sintering. It works on the principle of impact and attrition: size reduction is done by impact as the balls drop from near the top of the shell.

Is ball milling a chemical process?

Ball milling is one of central techniques of mechanochemical synthesis, that is, chemical synthesis by the action of mechanical force, such as by grinding, stretching, or shearing.

What is the critical speed of a ball mill?

A Ball Mill Critical Speed (actually ball, rod, AG or SAG) is the speed at which the centrifugal forces equal gravitational forces at the mill shell’s inside surface and no balls will fall from its position onto the shell. The imagery below helps explain what goes on inside a mill as speed varies.

What is ball milling used for?

The ball mill. Ball milling is a mechanical technique widely used to grind powders into fine particles and blend materials. Being an environmentally-friendly, cost-effective technique, it has found wide application in industry all over the world.

How do you make a ball mill at home?

Part 1 Part 1 of 2: Making the Ball Mill

1. Wood screws.
2. Four small caster wheels.
3. A cylindrical container with secure lid (a diameter of 3-5 inches and length of around 12 inches should be sufficient for milling)
4. A 1”x10”x14” wooden platform (you may need a smaller or larger platform if your cylinder is smaller or larger)

Which modes are observed in ball mill?

The ”cascade” – the rolling the grinding balls inside the mill drum. Mixed mode – the rolling the grinding balls when part of the grinding balls move in a circular trajectory with further fall. Waterfall – the grinding balls move along a circular trajectory and change it further under gravity.

Is ball milling a physical or chemical change?
