What are the parts of steering gear system give its function?
What are the parts of steering gear system give its function?
The steering gear system generates a torsional force at a certain scale which is then, in turn, is transmitted to the rudder stock that turns the rudder. Rudder actuators. Power units. Other auxiliary equipment needed to apply turn the rudder by applying torque.
What are the 3 main parts of steering gear system?
The machinery, rudder actuators, steering gear power units and the means of applying torque to the rudder stock necessary for eff ecting movements of the rudder. Two types of electrohydraulically-powered steering gears are in common use: the ram and the rotary vane.
What are the 5 functions of a steering system?
Functions of the steering system:
- It provides wheels swinging to the left or right.
- It provides vehicle turning as per the will of the driver.
- It provides the directional stability.
- It helps to control wear and tear of tyres.
- It helps in achieving the self-rightening effect.
How many main parts does a steering gear system have?
Steering System can be classified into three major parts, which are: Control Unit: It conveys the desired rudder angle from bridge to steering flat. Then it activates the power unit and transmission system in the steering room. Ex: Hydraulic Telemoter system.
What are the 2 parts of a Telemotor unit?
Telemotor unit comprises of two parts namely, Transmitter and Receiver.
What are the types of steering system?
There are two basic types of power steering systems used on vehicles. The rack and pinion steering system and the conventional/integral steering gear system, which is also known as a recirculating ball steering system.
What are the two types of steering gear?
There are two main types of steering gears used for most modern vehicles: the rack and pinion steering gear and the recirculating ball steering gear.
What are the 2 types of steering systems?
What are the parts of power steering?
The major power steering system components between the steering wheel and steering gear include the steering wheel itself, steering column, steering coupler, steering gear, power steering hoses, and power steering pump.
What is floating lever in steering?
When wheel order is starboard, the telemotor control moves the floating lever to A2 and the floating lever controls the pump discharge according to the feedback received from the hunting lever.
What are the 6 types of steering system?
Land vehicle steering
- Basic geometry.
- Rack and pinion, recirculating ball, worm and sector.
- Power steering.
- Speed-sensitive steering.
- Four-wheel steering.
- Articulated steering.
- Rear-wheel steering.
- Steer-by-wire.
What are the six types of steering system?
The different types of steering gears are as follows:
- Worm and sector steering gear.
- Worm and roller steering gear.
- Cam and double lever steering gear.
- Worm and ball bearing nut steering gear.
- Cam and roller steering gear.
- Cam and peg steering gear.
- Recirculating ball nut steering gear.
- Rack and pinion steering gear.

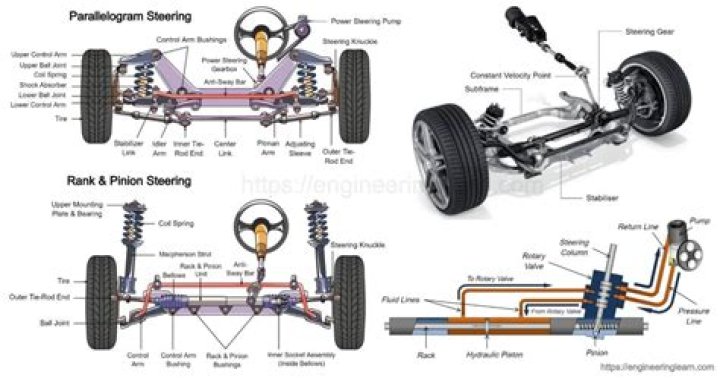

What are the different parts of a steering system?
Layout of Steering System or Components of Steering System Steering wheel: It is the control wheel to steer a vehicle by the driver. It contains traffic indicator switch, light switch, wiper switch etc. Steering linkage: The steering wheels are turned by the steering linkage. Steering shaft: The steering shaft is fitted inside the hollow steering column. Steering gear:
What are the parts of the steering system?
Every steering system, no matter what type, will have a steering wheel, a steering shaft and column, a flexible coupler, universal joints, steering arms, and ball sockets. These parts are discussed below. The only part of the steering system the average driver is familiar with is the steering wheel.
What are the two main types of steering systems?
Today, there are two basic types of steering systems: 1) standard mechanical (reciprocating ball) steering and 2) rack and pinion steering. The standard mechanical steering can be either power-assisted or non-power.
What is the function of a steering system?
The function of the Steering system. The steering provides stability to the vehicle on road. It minimizes tyre wear and tear. It prevents road shocks reaching to the driver. The steering provides self-rightening effect after taking a turn. Read more about steering:
