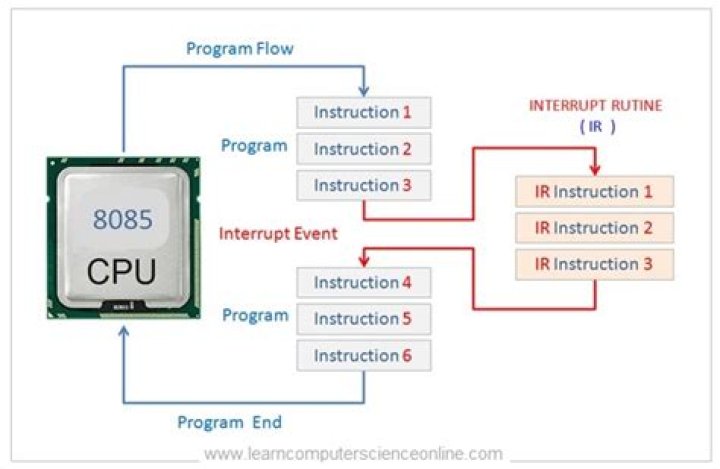

What are the interrupts of 8085 microprocessor?

There are 5 Hardware Interrupts in 8085 microprocessor. They are – INTR, RST 7.5, RST 6.5, RST 5.5, TRAP. Software Interrupts are those which are inserted in between the program which means these are mnemonics of microprocessor.

How many interrupts are there in 8085 microprocessor?

Software Interrupts are those which are inserted in between the program which means these are mnemonics of microprocessor. There are 8 software interrupts in 8085 microprocessor. They are – RST 0, RST 1, RST 2, RST 3, RST 4, RST 5, RST 6, RST 7.

Why one has to write EI instruction before returning from the ISR?

ISR must include the’EI’ instruction to enable the further interrupt within the program. RET instruction at the end of the ISR allows the MP to retrieve the return address from the stack and the program is transferred back to where the program was interrupted.

Which is highest priority interrupt of 8085 microprocessor?

TRAP
4.6

What are interrupts and their type?

TYPES OF INTERRUPTS Maskable Interrupt: The hardware interrupts which can be delayed when a much highest priority interrupt has occurred to the processor. Non Maskable Interrupt: The hardware which cannot be delayed and should process by the processor immediately.

Which interrupt is called as NMI?

In computing, a non-maskable interrupt (NMI) is a hardware interrupt that standard interrupt-masking techniques in the system cannot ignore. An NMI is often used when response time is critical or when an interrupt should never be disabled during normal system operation.

What is the need for interrupts in microprocessor operation?

Interrupts are important because they give the user better control over the computer. Without interrupts, a user may have to wait for a given application to have a higher priority over the CPU to be ran. This ensures that the CPU will deal with the process immediately.

What is unmasked interrupt?

1. Maskable interrupt is a hardware Interrupt that can be disabled or ignored by the instructions of CPU. A non-maskable interrupt is a hardware interrupt that cannot be disabled or ignored by the instructions of CPU.

What are multiple interrupts?

What is multiple Interrupt? An interrupt event that can occur while the processor is handling a previous interrupt.

What type of interrupt has the highest priority in microcontroller?

Explanation: TRAP is the internal interrupt that has highest priority among all the interrupts except the Divide By Zero (Type 0) exception.

What is the architecture of 8085 microprocessor?

The 8085 microprocessor is an 8-bit processor available as a 40-pin IC package and uses +5 V for power. It can run at a maximum frequency of 3 MHz. Its data bus width is 8-bit and address bus width is 16-bit, thus it can address 216= 64 KB of memory. The internal architecture of 8085 is shown is Fig. 2.

What are hardware and software interrupts?

Hardware and Software Interrupts – When microprocessors receive interrupt signals through pins (hardware) of microprocessor, they are known as Hardware Interrupts. There are 5 Hardware Interrupts in 8085 microprocessor. They are – INTR, RST 7.5, RST 6.5, RST 5.5,

What is the difference between EI and DI instruction in 8085?

•The ‘EI’ instruction is a one byte instruction and is used to Enable the non-maskable interrupts. •The ‘DI’ instruction is a one byte instruction and is used to Disable the non-maskable interrupts. •The 8085 has a single Non-Maskable interrupt.

Which instruction is used to disable the non-maskable interrupts?

• The ‘DI’ instruction is a one byte instruction and is used to Disable the non-maskable interrupts. • The 8085 has a single Non-Maskable interrupt. – The non-maskable interrupt is not affected by the value of the Interrupt Enable flip flop.
