How does a gear pump work?
How does a gear pump work?

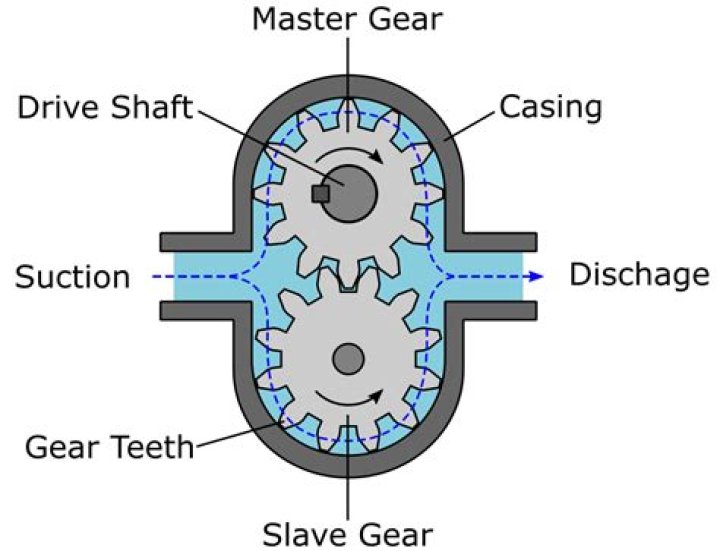

Gear pumps work by trapping fluid between the teeth of two or three rotating gears. Often, they are magnetically driven, which means they use less “wetted” materials for greater chemical compatibility. Gear pumps move a cavity that rotates rather than reciprocates.
How do I know if my gear pump is worn out?
The extent of wear can be approximated by visualizing the tooth profile on the back face transposed to the pressure face. Wear can cause noise, loss of pumping, priming, or lift ability. THIS PUMP SHOULD BE REPLACED – IT IS BEYOND REPAIR. A second form of gear wear is on the gear side faces (thickness).
Can gear pumps be variable volume?
Gear pumps: can be variable volume.
What are the 4 types of hydraulic pumps?
There are four types of hydraulic pumps:
- Gear pumps.
- Piston pumps.
- Rotary vane.
- Screw pumps.
What are 3 types of hydraulic pumps?
There are typically three types of hydraulic pump constructions found in mobile hydraulic applications. These include gear, piston, and vane; however, there are also clutch pumps, dump pumps, and pumps for refuse vehicles such as dry valve pumps and Muncie Power Products’ Live PakTM.
What are the different types of gear pumps?
Generally, gear pumps are of five types:
- External Gear Pump.
- Internal Gear Pump.
- Lobe Pump.
- Ge-rotor Pump ( Generated Rotor Pump )
- Screw Pump.
How do you maintain a gear pump?
Gear Pump Maintenance – Check bearings regularly. The bearings are the most important area of a gear pump to maintain because they can cause imbalance if misplaced or defective. Check bearings regularly and replace as necessary by removing the defective bearing with a puller.
How do you test a gear pump?
This test only works on a gear pump—sorry vane pump owners! Take a cloth and seal up the pump’s outlet. Then, take your air gun and blow compressed air into the pump’s inlet. If you find that a lot of air is passing out of the case drain port or suction port, this means there is an internal leak in the pump.
Do pumps increase pressure?
A pump does not create pressure, it only creates flow. Pressure is a measurement of the resistance to flow. In Newtonian (true) fluids (non-viscous liquids, such as water or gasoline), the term head is the measurement of the kinetic energy that a centrifugal pump creates.
What causes suction of fluid into the gear pump?
Gear pumps use the actions of rotating cogs or gears to transfer fluids. The rotating element develops a liquid seal with the pump casing and creates suction at the pump inlet.
How do I identify a Metaris hydraulic pump?
How to Identify Metaris Hydraulic Pumps & Motors 1. Look at the unit from the Port End; see which example it matches the closest. Include the shape. 2. Measure the overall width of the unit, then match the width to the chart beside the Port End Cover. 3. Note: Identification size may differ with different porting.
Why choose Metaris?
Metaris is a recognized global leading provider of high quality hydraulic and power transmission components servicing the mobile and industrial markets. Our commitment to quality, delivery and customer satisfaction makes Metaris the supplier of choice for hydraulic pumps (piston, vane, gear) & Power Take Off products.
Why choose Metaris MH series telescopic cylinders?
Our MH Series Telescopic Cylinders incorporate major design improvements over competitor’s cylinders. And of course, cross-over & interchange options are available. Metaris offers a broad range of piston and vane pumps & parts for Caterpillar® applications.
Is Metaris affiliated with Parker-commercial?
Metaris is not affiliated with Parker-Commercial in any way. All of the items listed on this website are Metaris Manufactured replacement parts and components, not original parts. All Information included on this web site is complete and correct to the best of our knowledge. However, we cannot assume any responsibility for errors.
