How does a 3 pin indicator relay work?

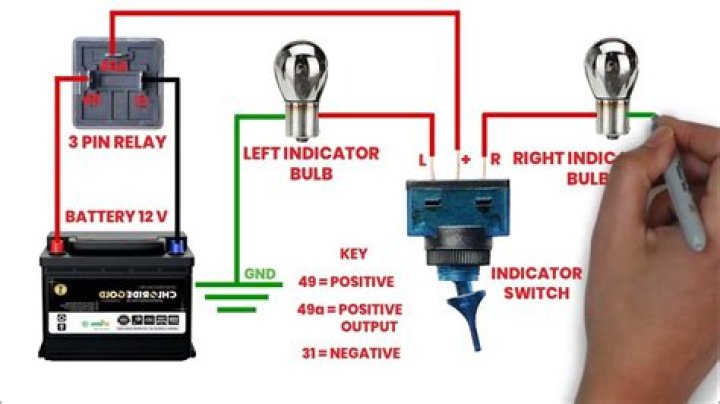

The relay is the electromechanical device that makes the operator switch-selections happen. Typically, a switch is engaged, which energizes the electromagnet in the relay. This electromagnet closes contacts that power the flasher and lighting circuit. Left, right or both sides can be selected.

Do I need a different flasher for LED lights?

The reason most mechanical flashers can’t work with LEDs is that LEDs need a small amount of current flow, not enough to heat the internal strip and open the circuit. Another category is an electronic flasher with a ground wire for LEDs. Usually, the ground connection is at fault when they won’t work correctly.

How do you test a 2 prong turn signal relay?

If they are 2 prong, hook one prong to +12v, hook the other prong to the + side of a test light, then ground the ground wire from the light, it should start flashing. Basically, the flasher is wired in series in the positive wire to the lights. It won’t cycle without being under a load.

How do you test a 2 pin flasher relay?

Testing the flasher unit To test the conventional type of flasher unit, use a circuit tester between the terminal marked B on the unit and the earth. Turn on the ignition . If the supply side of the unit is working, the bulb should light. If it does not, look for a break in the wiring between the unit and the fuse box.

How do you test a 3 prong flasher relay?

How to Test a Three-Prong Flasher Relay

1. Identify the terminals.
2. Clip the test light lead between the “P” terminal and the negative terminal of the battery.
3. Connect the “B” terminal to the positive terminal of the battery using the test wire with equal-length stripped ends, with one clip on each end.

What color is the turn signal wire?

Wiring New 4-Way Connector on Trailer with 5 Wires Going by the colors that you mentioned, it sounds like you have the typical set-up, green wire for right turn and brake, white wire for ground, yellow wire for left turn and brake, brown with green wire for right side running lights, and brown with… view full answer…

How do you test a signal light relay?

How to Test a Flasher Relay

1. Access the junction box where your flasher relay is located.
2. Turn your car or truck’s ignition on.
3. Connect the clip of the test probe to any good ground.
4. Remove the relay and locate its control and power terminals.
5. Turn your multimeter on and set it to the ohms setting.

Do I need a new relay for LED lights?

A relay is an electrical switch that lets a low current circuit control a high current circuit such as a large LED light bar. If you are using a light pod that does not have a very large amp draw, you may not need a relay switch, but if you are using a larger LED light bar, they are a must have.

What is the difference between relay and flasher?

The hazard and turn signal lights found on the vast majority of road going vehicles are controlled by a flasher, which is commonly referred to as a relay. The flasher is an electrical component that serves as the switch that allows the lights to flash on and off.
